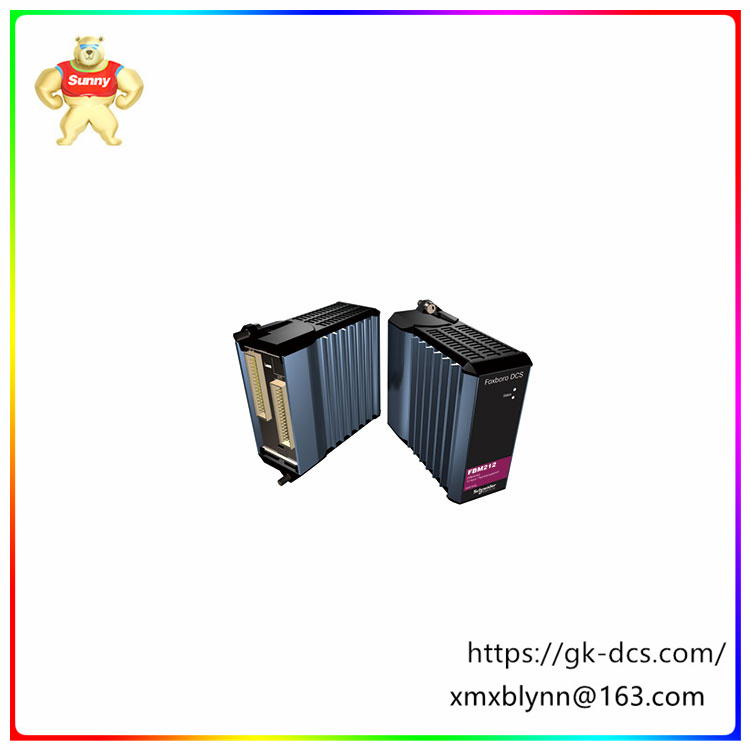

The RH914XL-FBM212 is a thermocouple/millivolt differential input module with several key features to meet the needs of industrial automation and monitoring applications.
First, the module contains 14 differentially isolated thermocouple input channels, which means it is able to receive and process signals from multiple thermocouple sensors simultaneously. Each channel is designed as a differential input, a design that allows voltage differences to be measured between channels, thereby reducing errors introduced due to external interference or line noise.
In addition, the RH914XL-FBM212 includes a differential isolated RTD reference junction temperature compensation channel. This feature enables the module to accurately compensate the terminal temperature sensing, thus improving the accuracy of temperature measurement.
In terms of input range, each thermocouple /mV channel is capable of accepting standard thermocouple signals in a variety of temperature ranges. In addition, each channel has thermocouple burn detection, an advanced feature that enables timely detection of thermocouple failures to avoid measurement errors due to thermocouple damage.
In addition to these basic functions, the RH914XL-FBM212 performs the signal conversion required to connect the electrical input, converting the signal from the field sensor into an optional redundant fieldbus signal. This allows modules to be easily integrated into various automation systems and to communicate with other devices.
In addition, the module is suitable for analog input applications and provides configurable conversion options, time and rate of change limits. These features enable users to flexibly configure modules according to specific application requirements to meet different monitoring and control requirements.
Overall, the RH914XL-FBM212 is a powerful and flexibly configured thermocouple/millivolt differential input module for a variety of industrial automation and monitoring applications. Not only does it provide accurate and reliable temperature measurements, it is also highly configurable and integrated, making it easy to meet the specific needs of users.
The RH914XL-FBM212 thermocouple/millivolt differential input module is suitable for a variety of application scenarios due to its unique functions and characteristics.
First, it is particularly suitable for the field of industrial automation. In this field, the RH914XL-FBM212 can receive and process signals from multiple thermocouple sensors, with each channel providing thermocouple burn detection, ensuring data accuracy and reliability. At the same time, its differential input design can reduce the introduction of errors due to external interference or line noise, thereby improving the stability of the entire system.
Second, the RH914XL-FBM212 is also suitable for scenarios that require accurate temperature monitoring and control. The differential isolated RTD reference junction temperature compensation channel can accurately compensate the terminal temperature sensing, making the temperature measurement more accurate. This has a wide range of applications where high precision temperature control is required, such as laboratories, medical equipment, precision machining and other fields.
In addition, the RH914XL-FBM212's analog input application capabilities, as well as configurable conversion options, time and rate of change limits, give it the flexibility to adapt to a variety of complex monitoring and control needs. Therefore, it can also be applied to energy management, environmental monitoring, aerospace, ship control and other fields.
Overall, the RH914XL-FBM212 thermocouple/millivolt differential input module is suitable for a variety of industrial automation and monitoring applications due to its high precision, high reliability and flexible configuration. In these scenarios, it can provide stable and reliable temperature measurement and signal conversion functions, providing strong support for a variety of systems.
