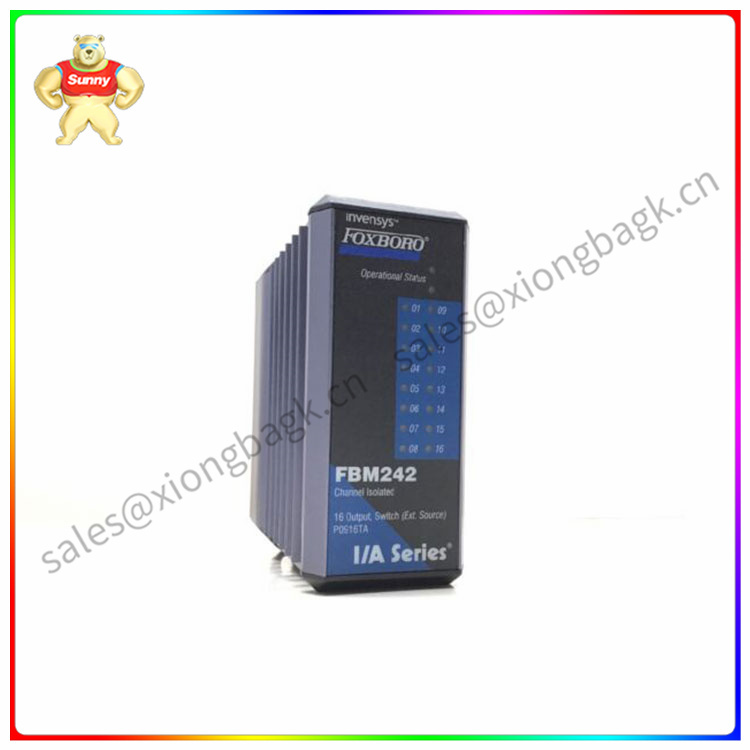

The FBM242-P0101AG is a discrete output interface module manufactured by Foxboro (now part of Schneider Electric). The module features support for 16 discrete outputs and can operate at a variety of voltages, such as 15 to 60 V dc, 120 V ac/125 V dc, and 240 V ac. Each input and output is electrically isolated, and when used with an external excitation, it is isolated for the group. This compact and rugged design is suitable for use in G3 class (i.e., harsh) environments.
In addition, the module is suitable for performing discrete I/O or ladder logic programs. In industrial automation and control systems, this type of module is often used to process and control discrete signals from various devices and sensors.
Details of the FBM242-P0101AG are as follows:
Product number: FBM242
Product Type: External source, discrete output interface module
Features:
16 discrete outputs
Supports discrete output signals at 15 to 60 V dc, 120 V ac/125 V dc, 240 V ac voltages
Each input and output is current isolated and group isolated when used with an external excitation
Design: Compact and rugged for enclosures in G3 (harsh) environments
Configurable options: Input filtering time, fail-safe configuration, failure, safe rollback, and continuous or instantaneous output
Input voltage range (redundancy) : 24V DC +5%, -10%
Power consumption (Max) : 3 watts at 24 volts DC (Max)
Heat dissipation: 6.5 watts at 24 volts DC (Max.) (1.5 amps for all outputs)
Calibration requirements: Modules and terminal components do not require calibration
Temperature module: -20 to +70 degrees Celsius (-4 to +158 degrees Fahrenheit)
End component PVC: -20 to +50 degrees Celsius (-4 to +122 degrees Fahrenheit)
Relative humidity: 5 to 95% (non-condensing)
Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
Weight: 0.284 kg
Shipping weight: 2 kg
The FBM242-P0101AG Discrete Output Interface module is typically an electronic device used to output discrete signals, such as digital signals, to other systems or devices. It can convert digital signals into a form suitable for communication with external devices, such as through relays, transistors, or other output elements to control the operation of external devices.
The FBM242-P0101AG discrete output interface module is used in many fields, such as industrial automation, control systems, computer hardware, etc. They can be used to control various devices such as motors, lights, sensors, etc.
The functions and features of the FBM242-P0101AG discrete output interface module may vary depending on its design and application scenario. Some modules may provide multiple discrete output passes
