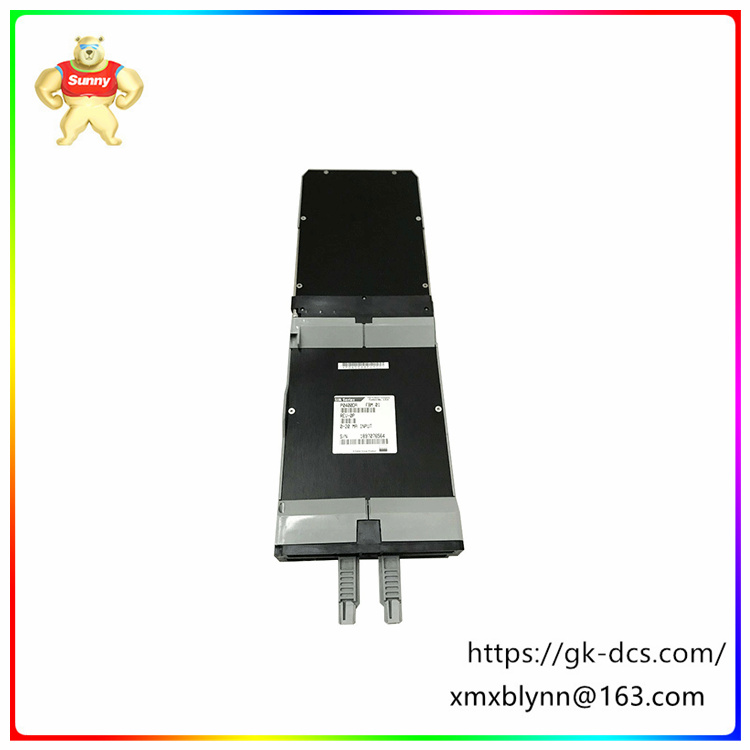

Foxboro (by Schneider Electric)
Product number: FBM201
Product type: Analog input interface module
Features: 8 analog sensor signal input channels: 0 to 20 mA DC - FBM201,0 to 100 mV DC - FBM201b,0 to 5 V DC - FBM201c,0 to 10 V DC - FBM201d, each analog input channel is electrically isolated from other channels and grounded, Compact, rugged design, enclosures for G3 (harsh) environments, performs analog input applications, offers configurable options for conversion time and integration time and rate of change limits, and delivers high accuracy through each channel's Σ-Δ data conversion. Terminating assembly (TA) for local or remote connection of field wiring to FBM201/b/c/d modules, terminating assembly of each channel internal and/or external loop powered transmitter.
Process I/O communication: communicates with its associated FCM or FCP via a redundant 2 Mbps module fieldbus.
Input channels: 8 isolated and independent channels
Input range (per channel) : FBM201:0 to 20 mA DC, FBM201b: 0 to 100 mV DC, FBM201c: 0 to 5 V DC, FBM201d: 0 to 10 V DC
Power consumption: 7 W (Max)
Heat dissipation: 3 W (Max)
Calibration requirements: No calibration modules and termination components are required.
Temperature: -40 to +70°C (-40 to +158°F)
Relative humidity: 5 to 95% (non-condensing).
Altitude: -300 to +12,000 m (-1,000 to +40,000 ft)
Temperature: -40 to +70°C (-40 to +158°F)
Dimensions (L x W x H) : 10.4cm x 4.5cm x 11.4cm
Weight: 0.284Kg
Shipping weight: 2 Kg
